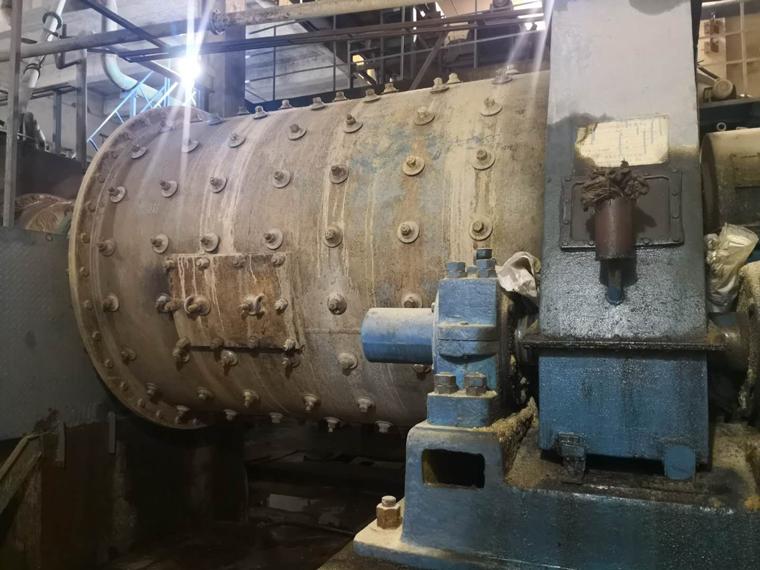

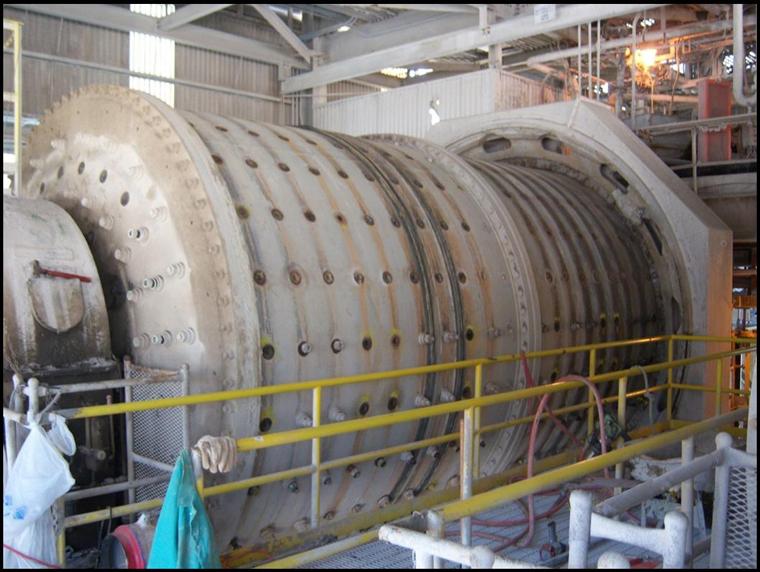

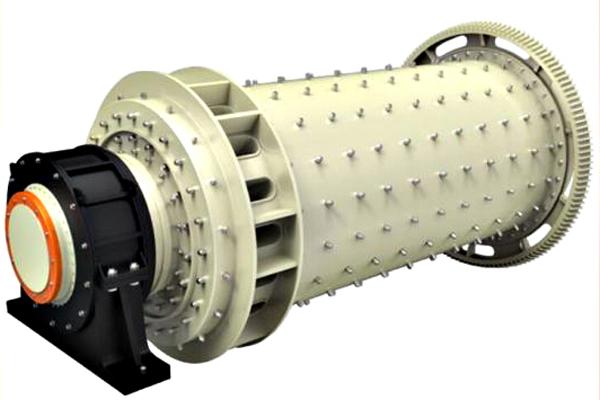

Rod mill is a grinding equipment with steel rod as grinding medium. It is used to coarse grinding and suitable for fine crushing and coarse grinding in first stage of open circuit grinding. This machine include overflow rod mill, end peripheral discharge rod mill and center peripheral discharge rod mill, which could meet different requirement.
Features and technology advantages of rod mill
1.The steel rod takes regular movement in mill
2. It is convenient to install and maintain
3. Rapidly discharging
4. Even particle size of product, little over grinding
Working principle of rod mil
The rod mill is driven by motor with speed reducer and peripheral large gear, or low speed synchronous motor with peripheral large gear. The grinding medium-steel rod is put into the cylinder which is lifted, and then fall under the action of the centrifugal force and friction force. The materials entering into cylinder from the feeding inlet are grinded by movable grinding medium and discharged out by overflow and continuously feeding.
Specification of rod mil
Model |
Cylinder Diameter (mm) |
Cylinder Length (mm) |
Power (kw) |
Max. Rodl Load (t) | Capacity (t/h) |
Effective Volume (m3) |
Weight (t) |
MBY0918 | 900 | 1800 | 22 | 1.7 | 0.62~3.2 | 0.9 | 5.7 |
MBY0924 | 900 | 2400 | 30 | 2.1 | 0.81~4.3 | 1.2 | 5.9 |
MBY1224 | 1200 | 2400 | 45 | 2.3 | 0.4~4.9 | 2.28 | 12.3 |
MBY 1530 | 1500 | 3000 | 95 | 5 | 0.4~4.9 | 5 | 20 |
MBYG1530 | 1500 | 3000 | 80 | 5 | 2.4~7.5 | 5 | 21 |
MBYG2130 | 2100 | 3000 | 180 | 9 | 14~35 | 9 | 42 |
MBYG2136 | 2100 | 3600 | 210 | 11 | 43~61 | 10.8 | 46 |
MBYG2430 | 2400 | 3000 | 280 | 12 | 45~65 | 11.5 | 56 |
MBYG2732 | 2700 | 3200 | 320 | 14 | 31~76 | 15.7 | 83 |
MBYG2736 | 2700 | 3600 | 380 | 18 | 32~86 | 17.7 | 91 |
MBY2740 | 2700 | 4000 | 400 | 20.5 | 43~110 | 20.4 | 75 |
MBY3040 | 3000 | 4000 | 570 | 28 | 54~135 | 26 | 93 |
MBY3245 | 3200 | 4500 | 800 | 33 | 64~180 | 31 | 113 |
MBY3645 | 3600 | 4500 | 1250 | 42 | 80~230 | 41.8 | 139 |
MBY3654 | 3600 | 5400 | 1600 | 47 | 100~250 | 49.7 | 152 |
