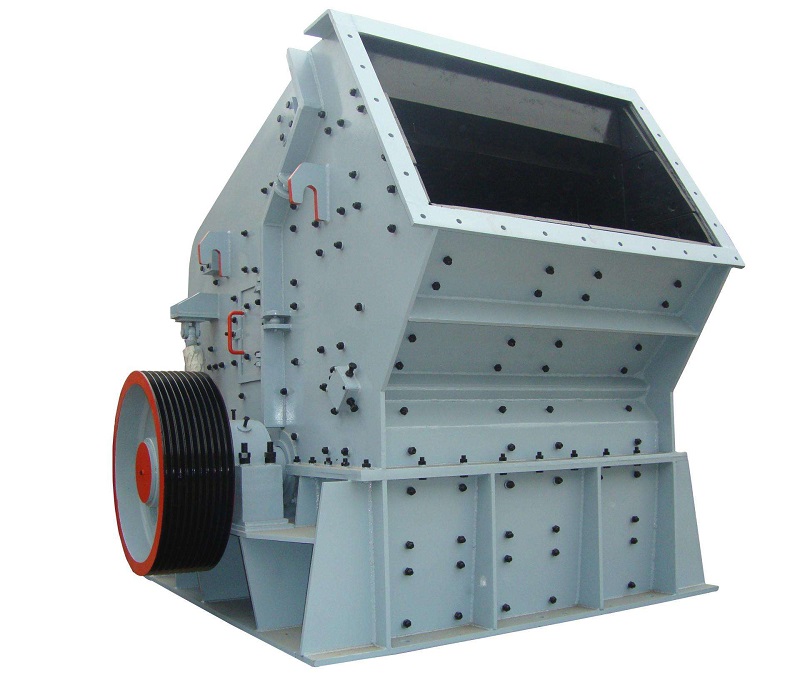

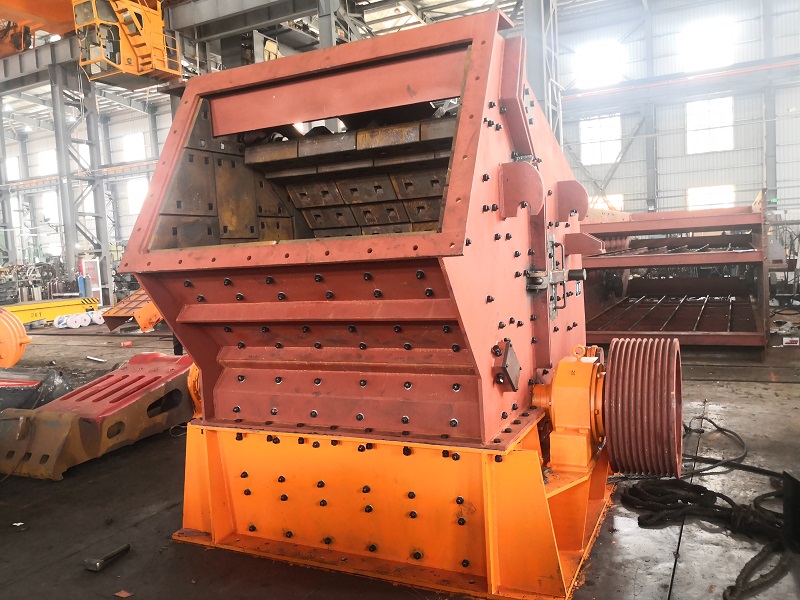

The design of impact crusher adopts novel design principle, new concepts of crushing technology; meets demands of crushing different materials in different degrees; satisfies the need of “more crushing, less wearing”. Impact crusher not only has a great crushing ratio and fine products of uniform shape, it also consumes less power per unit. It’s unique design lowers its cost of repair and maintenance, thus improves its productivity and reduces its cost. Impact crusher proves the bright prospect of its application in mining processing industry through large scale projects.
Features of impact crusher
1.It has a big feed opening and a high crushing chamber. Materials of high hardness and big size can be crushed by it, and the product is of less powder.
2.The space between the impact plate and the blow bar can be adjusted conveniently. The particle size is controled effectively. The product is of good shape.
3.It has a compact structure and can resist strong forces. Its totor has a great rotational inertia.
4.Chrome hammer is used and can bear impacts, abrading and can impact with a great force.
5.The no- board connection makes it easy to repaire and maintain.
6.It has more crushing functions and is of bigger productivity, less wearing, higher comprehensive benefits.
Working principle of impact crusher
This impact crusher consists of main frame, rotor, front blow bar and back blow bar. Each gyrating cycle is formed by V-belt driving rotor through electronic and materials are crushed by high speed impact of flat hammer on gyrating rotor. After that, the materials are crushed again by throwing impact liner and then crushed again from impact plate to flat hammer. This process works again and again until materials being qualified size.
Specification of impact crusher
Model | Rotor specification (mm) | Max feeding size (mm) | Capacity (t/h) | Power (Kw) |
Weight (t) | Overall dimension (L x W x H) (mm) |
PF0807 | D850x700 | 250 | 15-30 | 45 | 8.1 | 2210x1490x2670 |
PF1007 | D1050x700 | 300 | 25-60 | 55 | 9.5 | 2400x1558x2660 |
PF1010 | D1050x1000 | 350 | 50-80 | 75 | 12.2 | 2400x2250x2720 |
PF1210 | D1250x1050 | 350 | 70-120 | 110 | 14.1 | 2690x2330x2890 |
PF1214 | D1250x1400 | 400 | 110-180 | 132 | 18.6 | 2690x2688x2890 |
PF1315 | D1320x1500 | 500 | 160-250 | 200 | 23.4 | 3096x3273x;2667 |
PF1515 | D1500x1500 | 600 | 220-280 | 315 | 26.5 | 3553x3235x3277 |
PF1620 | D1600x2000 | 700 | 400-550 | 500 | 40.5 | 3669x3510x3505 |
